PN:90SF0071-M04120

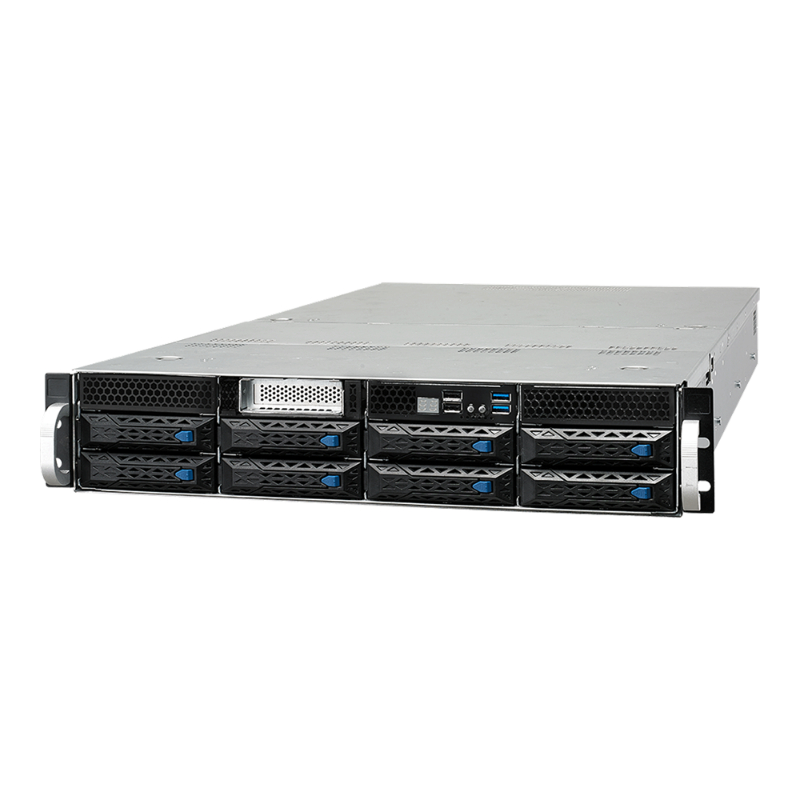

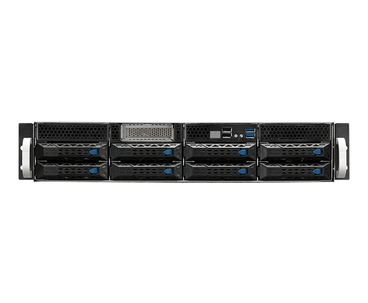

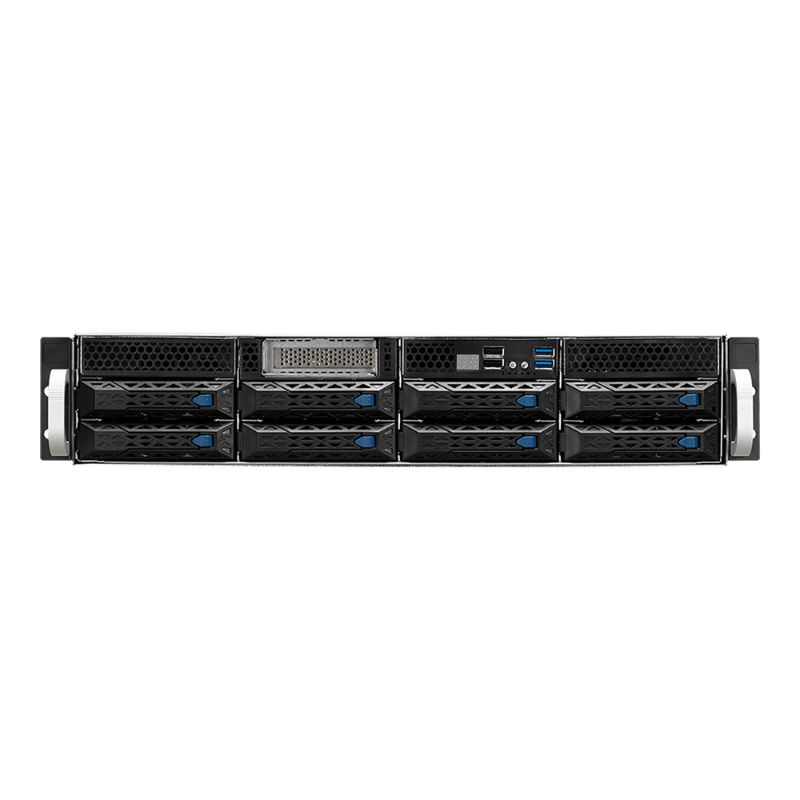

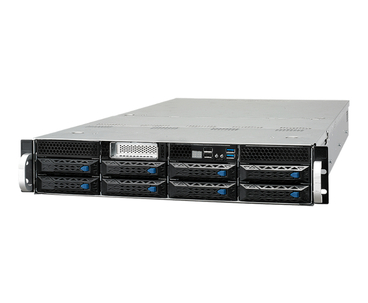

SERVIDOR ASUS ESC4000 G4/2200W
LGA3647/ C621/ Aspeed AST2500/ VGA/ 2U
PN:90SF0071-M04120
SERVIDOR ASUS ESC4000 G4/2200W
LGA3647/ C621/ Aspeed AST2500/ VGA/ 2U
- ● Procesador - Familia: Intel Xeon
- ●Con Ventilador: Si
- ●Gráfica dedicada: Aspeed AST2500
- ●Hdmi: No
- ●Imagen Salida: No
- ●Medidas: 800 x 440 x 88mm
- ●Memoria Gráfica (VRAM): 64 MB
- ●Microprocesador: Intel
- ●Microprocesador Integrado: No
- ●Nº Bancos De Memoria: 16
- ●Nº Conexiones SATA: 08
- ●Tecnologia De Memoria: DDR4 ECC
Especificaciones
Processor / System Bus
2 x Socket P (LGA 3647)
1st and 2nd Gen Xeon® Scalable Processor Family (150W)
Core Logic
Intel® PCH C621
Memory
Total Slots :
16 (8-channel, 1DPC)
Capacity :
Max. 2,048GB
Memory Type :
DDR4 2933 RDIMM / LRDIMM / LRDIMM 3DS
Memory Size :
128GB, 64GB, 32GB, 16GB
* Refer to support page for more information
Expansion Slots
Front :
1 x PCIe x8 slot (Gen3 x8 link,LP,HL) for RAID/HBA card
Rear :
8 x PCIe x16 slots (Gen3 x16 link,FH,FL) for dual-slot GPU cards
1 x PCIe x16 slot (Gen3 x16 link, LP, HL)
1 x PCIe x8 slot (Gen3 x8 link, LP, HL)
Storage
Storage Controller :
Intel® PCH C621
Optional kits Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G HBA card
ASUS PIKE II 3108-8i 8-port SAS 12G RAID card
Drive Bays
8 x 3.5" Hot-swap Storage Bays (Backplane Supports 6 x SATA/SAS + 2 x SATA/SAS/NVMe Devices)*
1 x M.2 socket (SATA or Gen3 x4 link, up to 2280 module)
Networking
2 x 1GbE LAN ports (RJ45, Intel I350-AM2)
Multi-GPU Support
Please find the latest GPU support from
https://servers.asus.com/support/GPU
Front I/O Ports
2 x USB 3.2 Gen1 ports
2 x USB 2.0 ports
Rear I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
2 x 1GbE LAN ports (RJ45)
1 x Management port (RJ45)
Switch/LED
Front :
1 x Power Button/LED
1 x Location Button/LED
2 x LAN LED
1 x Message LED
1 x HDD Access LED
Rear :
1 x Power Button/LED
1 x Location LED
1 x Message LED
1 x HDD Access LED
Dimensions
800 x 440 x 88mm
Form Factor
2U
Weight
Net Weight: 34 Kg.
Gross Weight: 44 Kg.
Power Supply
1+1 Redundant 1600W 80 PLUS Platinum Power Supply
Rating: 100-127Vac/200-240Vac,12.9A/9.5A, 47-63Hz
1+1 Redundant 2200W 80 PLUS Platinum Power Supply Rating: 100-127Vac/200-240Vac,14A/12.6A, 47-63Hz
Environment
Operation temperature: 10 ~ 35
Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)
Note
*The front 2 x NVMe signal is shared with the front PCIe slot (Gen3 x8 link).
PN:90SF0071-M04120
SERVIDOR ASUS ESC4000 G4/2200W
LGA3647/ C621/ Aspeed AST2500/ VGA/ 2U
PN:90SF0071-M04120
SERVIDOR ASUS ESC4000 G4/2200W
LGA3647/ C621/ Aspeed AST2500/ VGA/ 2U
Las especificaciones e imágenes están sujetas a cambios sin previo aviso. Todas las marcas y logotipos son propiedad de sus respectivos fabricantes. La foto puede mostrar otros productos que se venden por separado.
